This article is the third in a series on Looper and Handler in Android. To fully understand the concepts discussed here, it's assumed that you have read or are already familiar with the concepts covered in part1 and part2. If not, I recommend visiting those articles first.

In this article, we will explore deeper into the post() method of Handler, with an example. By the end of this article, you would have a clear understanding of how the post() method executes your code in a different thread.

How to use Handler

There are two main way Handler can be used in programming:

1. Adding or posting operation to be executed directly inside the thread from another thread. This flow is invoked by the post() method of Handler.
2. Sending a message about the operation which needs to be done inside the thread from another thread. This flow is invoked by a combination of thesendMessage() and handleMessage() methods of Handler.

When to use post()

The post() method is particularly useful when you want to quickly run a block of code in another thread. For example, if you are running some computationally intensive operation in a background thread but want to post updates to the UI, then you can use a Handler attached to the MainThread for same.

// Example code demonstrating the usage of post() method
public class ThreadWithLongRunningOperation extends Thread {

    @Override
    public void run() {
        // Some long running operation

        // Post intermediate progress to UI
        Handler mainThreadHandler = new Handler(Looper.getMainLooper());
        mainThreadHandler.post(new Runnable() {
            @Override
            public void run() {
                // update UI
            }
        });

        // Continue operation

        // Update UI to show completion (here, runnable is posted using lambda)
        mainThreadHandler.post(() -> {
            // Update UI
        });
    }
}

Inner working of post()

The signature of the post method is

public final boolean post (Runnable r)

From part 2, we know that Handler is used to interact with the Message loop, and Looper only operates on the Message object. So, post() will first convert the Runnable to a Message and add it to the queue as shown below AOSP code snippet of Handler.java:

    // Method to convert Runnable to Message
    private static Message getPostMessage(Runnable r) {
        Message m = Message.obtain();
        m.callback = r;
        return m;
    }

    /**
     * Causes the Runnable r to be added to the message queue.
     * The runnable will be run on the thread to which this handler is
     * attached.
     */
    public final boolean post(@NonNull Runnable r) {
       return  sendMessageDelayed(getPostMessage(r), 0);
    }

    /**
     * Enqueue a message into the message queue after all pending messages
     * before (current time + delayMillis). You will receive it in
     * {@link #handleMessage}, in the thread attached to this handler.
     */
    public final boolean sendMessageDelayed(@NonNull Message msg, long delayMillis) {
        if (delayMillis < 0) {
            delayMillis = 0;
        }
        return sendMessageAtTime(msg, SystemClock.uptimeMillis() + delayMillis);
    }

    /**
     * Enqueue a message into the message queue after all pending messages
     * before the absolute time (in milliseconds) <var>uptimeMillis</var>.
     * <b>The time-base is {@link android.os.SystemClock#uptimeMillis}.</b>
     * Time spent in deep sleep will add an additional delay to execution.
     * You will receive it in {@link #handleMessage}, in the thread attached
     * to this handler.
     */
    public boolean sendMessageAtTime(@NonNull Message msg, long uptimeMillis) {
        MessageQueue queue = mQueue;
        if (queue == null) {
            RuntimeException e = new RuntimeException(
                    this + " sendMessageAtTime() called with no mQueue");
            Log.w("Looper", e.getMessage(), e);
            return false;
        }
        return enqueueMessage(queue, msg, uptimeMillis);
    }

Note: You can also use Handler to post block of code to execute on same or another thread with some delay using postDelayed method. If you want to execute the Runnable after some time instead of immediately you can replace post with postDelayed. Using postDelayed will call sendMessageDelayed method with the delay provided in the parameter instead of 0 as shown above.

Finally, the runnable is executed inside dispatchMessage() from the loop() method we saw in part2.

public void dispatchMessage(@NonNull Message msg) {
    if (msg.callback != null) {
        handleCallback(msg);
    } else {
        // Handle other types of messages
    }
}

private static void handleCallback(Message message) {
    message.callback.run();
}

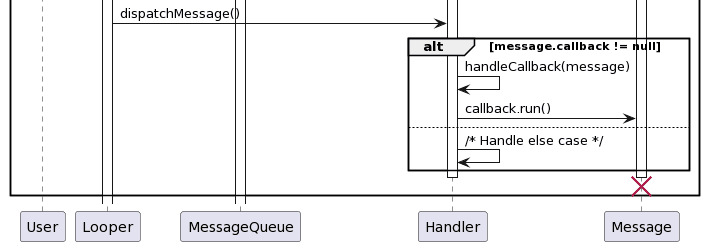

Adding these new pieces to our sequence diagram from part 2, results in below diagram

Example

Now, let us look at an example where we will use the post() method. Here, we will post() the progress of some long running operation in the main thread which will update the UI. This is similar to how we used to update UI inside AsyncTask's onProgressUpdate. As AsyncTask is now deprecated, this is a suitable alternative.

First, let us update the ThreadWithLongRunningOperation class as below

public class ThreadWithLongRunningOperation extends Thread {

    private final Consumer<Integer> mOnThreadProgressConsumer;

    public ThreadWithLongRunningOperation(Consumer<Integer> onThreadProgressConsumer) {
        this.mOnThreadProgressConsumer = onThreadProgressConsumer;
    }

    @Override
    public void run() {
        // Dummy sleep value to show work is happening
        final long SLEEP_TIME_MS = 1000;

        // Create a handler using the Main thread looper
        Handler mainThreadHandler = new Handler(Looper.getMainLooper());

        // Post to the main handler; this will run the Runnable code block in UI thread
        mainThreadHandler.post(() -> mOnThreadProgressConsumer.accept(0));

        // Some long-running operation; using sleep to simulate the same
        trySleep(SLEEP_TIME_MS);

        // Post intermediate progress to UI
        mainThreadHandler.post(() -> mOnThreadProgressConsumer.accept(50));

        // Continue operation; using sleep to simulate the same
        trySleep(SLEEP_TIME_MS);

        // Update UI to show completion
        mainThreadHandler.post(() -> mOnThreadProgressConsumer.accept(100));
    }

    private void trySleep(long millis) {
        try {
            sleep(millis);
        } catch (InterruptedException e) {
            // do nothing
        }
    }
}

Note: If you want to learn about the Consumer interface, I have posted an article here.

In the activity_main.xml layout we will use the TextView to show the progress:

    <TextView
        android:id="@+id/counter_tv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="0"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

Finally, in our MainActivity.java, we will start the Thread and consume the update as follows:

public class MainActivity extends AppCompatActivity {

    TextView mCounterTextView;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mCounterTextView = findViewById(R.id.counter_tv);
    }

    @Override
    protected void onResume() {
        super.onResume();
        ThreadWithLongRunningOperation threadWithLongRunningOperation
                = new ThreadWithLongRunningOperation(
                        (progress) -> mCounterTextView.setText(String.valueOf(progress))
        );
        threadWithLongRunningOperation.start();
    }
}

Example explanation

The provided code features a custom thread, ThreadWithLongRunningOperation, which executes a simulated long-running operation and communicates progress updates to the UI thread through a Handler. The Handler, associated with the main thread's Looper, posts UI updates using the post() method to be executed inside the UIThread.

In the MainActivity, an instance of this custom thread is created and started in the onResume method, with progress updates displayed in a TextView. The Handler ensures proper communication between the background thread and the UI thread, allowing smooth progress updates in response to the long-running operation.

Conclusion

In this article, we examined how Message gets added to the MessageQueue inside the Handler class. We explored how Runnable objects are converted to Message and saw an example of using the post() method to update the UI thread from another background thread.

In the next article, we will continue our exploration of the Handler class and delve into the usage of the sendMessage() and handleMessage() methods.

Stay tuned for more insights into effective handler usage in Android development!
